FOX Fork Volume Spacers
Dial in your fork progression using these easy-to-install volume spacers.
What Are Volume Spacers?

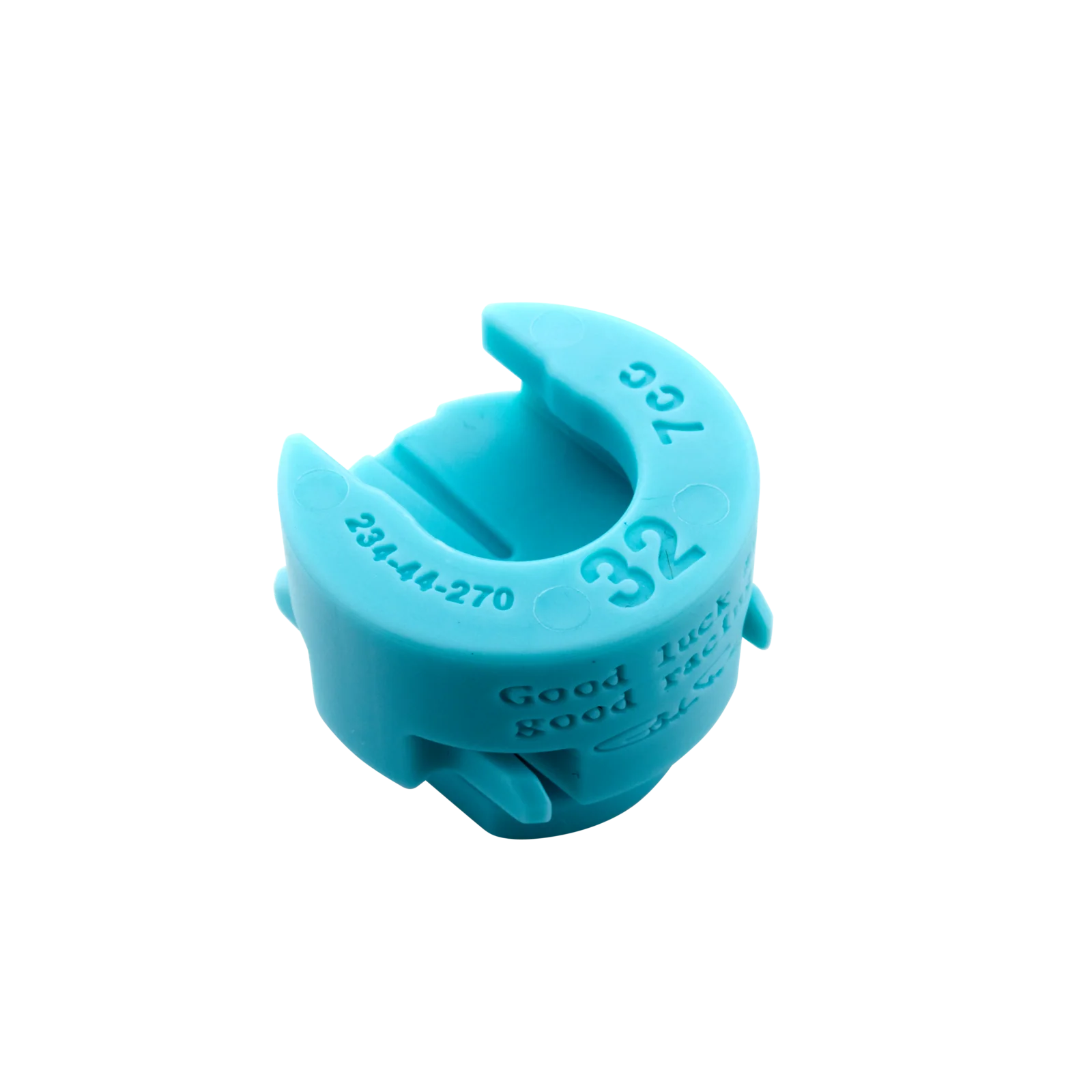

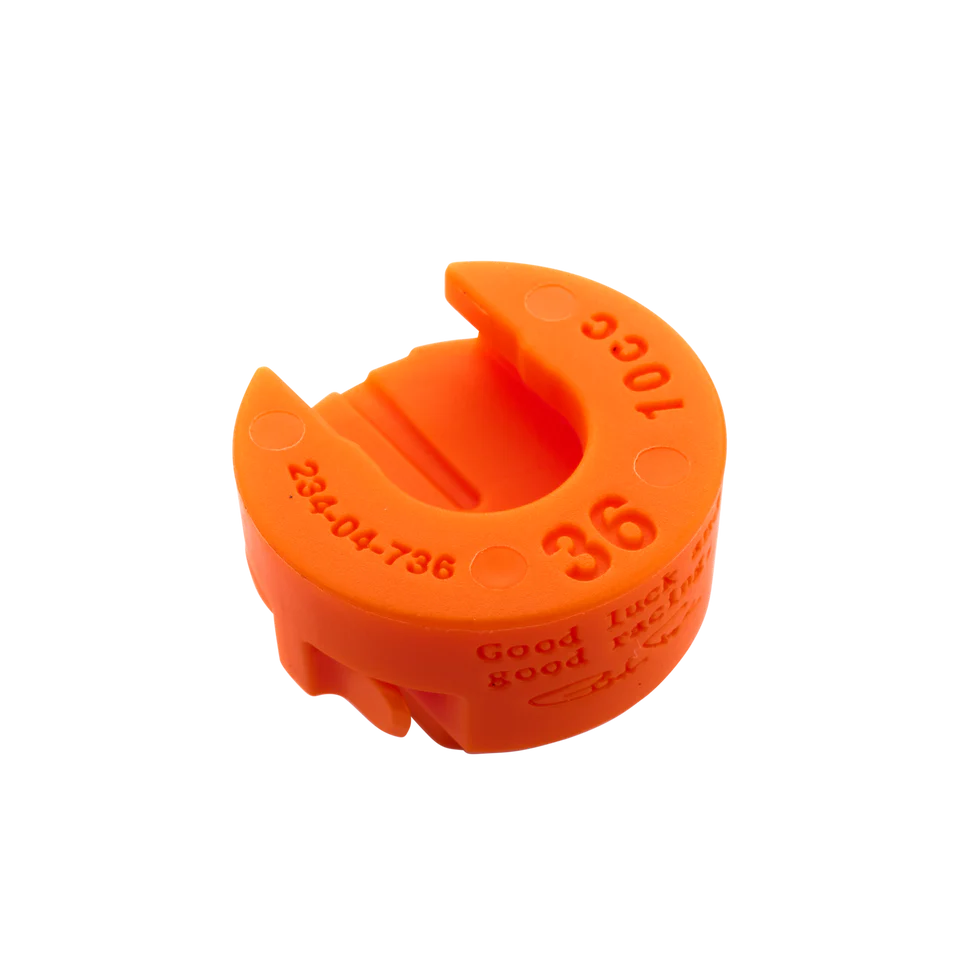

Volume spacers (aka “tokens”) are little pieces that go inside the fork’s air spring to change how the fork ramps up. More tokens = more mid-stroke support and more bottom-out resistance (a steeper “ramp”). Fewer tokens = less ramp-up, so it’s easier to use all the travel.
Bottoming Out Too Easily?
If your sag is set correctly and you’re blowing through the travel or bottoming out too easily, add a token (or swap to a larger spacer) to increase bottom-out support.
Not Getting Full Travel?
If your sag is set correctly and you’re not getting full travel even on big hits, remove a token (or use a smaller spacer) to make the fork use more of its travel.
Each volume spacer unit adjusts the air spring volume by the following amount:
- 32 TC: 7cc
- 32: 8cc
- 34: 10cc
- 36: 10cc
- 38: 10cc
- 40: 10cc
- Podium: 7cc
Original: $1.83
-65%$1.83
$0.64
Description
Dial in your fork progression using these easy-to-install volume spacers.
What Are Volume Spacers?
Volume spacers (aka “tokens”) are little pieces that go inside the fork’s air spring to change how the fork ramps up. More tokens = more mid-stroke support and more bottom-out resistance (a steeper “ramp”). Fewer tokens = less ramp-up, so it’s easier to use all the travel.
Bottoming Out Too Easily?
If your sag is set correctly and you’re blowing through the travel or bottoming out too easily, add a token (or swap to a larger spacer) to increase bottom-out support.
Not Getting Full Travel?
If your sag is set correctly and you’re not getting full travel even on big hits, remove a token (or use a smaller spacer) to make the fork use more of its travel.
Each volume spacer unit adjusts the air spring volume by the following amount:
- 32 TC: 7cc
- 32: 8cc
- 34: 10cc
- 36: 10cc
- 38: 10cc
- 40: 10cc
- Podium: 7cc
